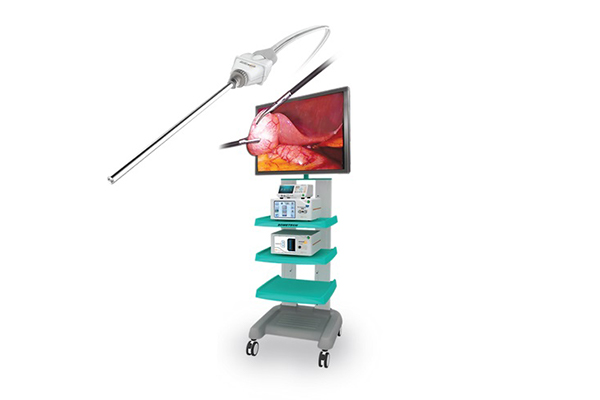

3D Laparoscopic System Features

Crystal clear image (FULL-HD, 1920 X1080)(60P)
3 Chip CCD adopted for natural color and deep depth perception
Short learning curve
High quality Scope (0°, 30°)
User friendly GUI

Characteristics

1920×1080P@60Hz High-Definition Image
Depth perception by 3D stereoscopic image

Convergence Control

With a basic working distance of 5cm, working distance is possible to be adjusted from 3cm as close range to 10cm as long range, allowing effective surgery for both close range and far

Main Unit

1. Binocular Disparity Control

Human eyes see objects with binocular disparity. In the same way, two cameras are used to display 3D image Adjustment jig is provided to easily adjust the Binocular Disparity after scope replacement. Adjustment can be set with simple touch screen on the Binocular Disparity Control menu

2. White Balance Function

Automatically adjust the white balane of the camera image

3. Rotate Function

Depending on the operation environment, the image can be rotated 180 degrees

4. Interfaces 4 HDMI Output

Total 4 HMDI interfaces installed, 3 HDMI-out for 3D image and 1 HDMI-out for 2D image

Scope Unit (True-Eye)

Scope integrated with LED light

Light cables are very simple because scope's light source integrates with camera cables.

High resolution 1920 X 1080P@60Hz 3Chip CCD camera is used to express vivid and rich color and implement clear and accurate image

High Resolution Rod Lens Design

By employing an independently developed Rod Lens, high-resolution 3D laparoscopy is implemented

Light Source (Solebeam)

LED Light Source

6,500。K color temperature to reduce eye fatigue Light intensity of over 47,000LUX for easy visibility during surgery

General Surgery

• Appendectomy
• Gastrectomy
• Cholecystectomy
• Hepatectomy
• Colectomy
• Pancreatectomy
• Splenectomy
• Adrenalectomy
• Rectal surgery
• Bariatric surgery
• Gastric bypass
• Small bowel resection
• Common bile resection
• Common bile duct surgery

Obstetrics and gynecology

• Hysterectomy
• Myomectomy
• Salpingo-Oophorectomy
• Ovarian cystectomy
• Hysterectomy
• Pelvic lymph node dissection(PLND)

Urology

• Nephrectomy (Total or partial )
• Pelvic reconstruction
• Renal cystectomy
• Prostate tumor
